Solution Architecture Fundamentals

7 Principles for Cloud Excellence

Architecture Fundamentals - Core Role Focus

Architecture = an intentional decision system, not a diagram.

Your 2026 deliverables (per WAF architect-role/fundamentals):

• Business-aligned strategy → design specification + diagrams
• ADR log for every architecturally significant choice (incl. rejected options)
• DR plan + security/compliance affordances baked in early, not retrofitted
• PoCs that retire your riskiest assumptions before code lands

Superpower: Multi-perspective experience (build → run → secure → recover).

Ongoing decisions, not a static diagram. Reversible first; one-way doors named.

Architecture Fundamentals - Decision Framework

Architecture = an intentional decision system, not a diagram.

5-step loop: Identify → Analyze → Decide → Implement → Learn.

Keys

• Surface decisions in the backlog, before code commits
• Classify one-way doors (hard to reverse) vs two-way doors (easy to undo)
• Capture rationale, alternatives & trade-offs in an ADR
• Re-open after incidents, drift, or KPI shifts

Architecture Fundamentals - Business Alignment

5-step discovery process — turn business intent into testable technical requirements.

1. Listen — capture stakeholder requests and the assumptions baked in
2. Probe — keep asking "why?" until the real motivation surfaces
3. Clarify — translate motivations into per-flow, measurable requirements
4. Evaluate — test feasibility, constraints & cross-pillar trade-offs
5. Recommend — propose options w/ rationale; validate with PoCs + KPIs (ADR-ready)

Architecture Fundamentals - Pattern & Forward Thinking

Architecture Fundamentals - Supportability & Collaboration

Growth Loop: Learn → apply → codify.

If not operable, it’s not done.

Architecture Fundamentals - Method & Improvement

Toolkit

• Checklists & maturity baseline (per pillar)
• ADR catalog + pattern library
• Fitness reports (drift, KPI deltas, error budget burn)

Loop

Assess → Prioritize → Implement → Validate → Instrument → Reassess

1. Decision-Making Framework

# ADR-001: Multi-Region Strategy
Status: Accepted
Date: 2026-05-13

## Context
Need 99.99% availability for
critical healthcare platform

## Decision
Implement active-active across
3 Azure regions

## Consequences
- 3x infrastructure cost
- Complex data sync

2. Master Cloud Design Patterns

Pro Tip: Start with Azure Architecture Center pattern catalog

3. Forward-Thinking Design

4. Design for Supportability

Success Metric: MTTR ↓ ~75% when observability wired in from day one, not retrofitted.

5. Continuous Skill Enhancement

6. Collaboration Excellence

Key Partnerships

7. Methodical Design Approach

Structure Brings Success

Essential Tools

• Design: Visio, Draw.io, Lucidchart, C4 Model
• Documentation: ADRs, Wiki, Backstage
• Assessment: WAF Review, Azure Advisor
• Validation: Chaos Engineering, Load Testing

"A good architecture is not accidental-it's methodical"

Microsoft Azure Well-Architected Framework

Microsoft Azure Well-Architected Framework Goals

The Azure Well-Architected Framework drives real world business outcomes by guiding organizations to:

• Enhance Resilience: Higher availability and faster recovery
• Improve Security: Proactive protection of critical data
• Optimize Costs: Streamlined resource usage with high ROI
• Accelerate Innovation: Faster feature deployment and agile operations
• Boost Operational Excellence: Robust monitoring and automation
• Optimize Performance: Consistent scalability and right-sized workloads

Business Impact of the WAF

Outcomes from organizations that adopted the framework:

• 304% ROI within 3 years (Forrester TEI study)
• 40% reduction in downtime — Global Retailer
• 25% cost savings — Financial Services
• 75% faster server updates — Manufacturing
• 93/100 security score — Profisee

Azure Well-Architected Framework Overview

Ongoing fitness regimen, not a one-time audit. Each pillar has a /tradeoffs page on learn.microsoft.com.

Reliability - Principles

Reliability = keep the user promise under failure.
Be resilient, recoverable, available — across code, infra, and ops.

• Set targets per critical flow, not a blanket "always up"
• Rate user/system flows; run FMA before any redundancy spend
• SLI/SLO + RTO/RPO per flow — negotiated with the business
• Design for graceful degradation; keep critical paths boring and simple
• Distinguish failures (need intervention) from errors (expected ops)
• Treat read and write failures separately — different blast radius, different fix

Maxim: Resilience is engineered, not discovered after the fact.

Reliability - Practices (Engineering)

Failure mode first — design the failure path before the happy path.

• Right-sized redundancy: AZs default; multi-region only where Tier-0 RTO/RPO demands it
• Self-healing via DLQs (poison messages) + checkpoints (long-running transactions) + PeekLock + duplicate detection (at-least-once idempotency)
• Handle read vs write failures separately — Blob primary→secondary read; graceful degrade when both fail
• Client-side transient-fault handling via SDK retries; check IsTransient before retrying
• Isolate connection pools so one hot path can't starve another (cascading-failure guard)
• Chaos / fault injection on critical flows — validate graceful degradation, not just uptime

Reliability - Practices (Operations)

If you haven't run the runbook, you don't have a runbook.

• Synthetic user journeys + health probes feeding a flow-level health model
• Tiered backups + timed restore drills to an isolated environment (untested = no backup)
• Runbooks executed end-to-end quarterly; named DR activation criteria (what counts as a disaster — not "looks bad")
• Automated failover validation in CI; keep failover test green as a gate
• Advisor Score → next concrete action on the reliability backlog
• Scheduled, automated chaos + AI-assisted anomaly detection feeding self-heal loops

Reliability - Key Metrics

Untested = unproven. A backup you've never restored, a failover you've never triggered, a runbook you've never run — those are liabilities, not assets.

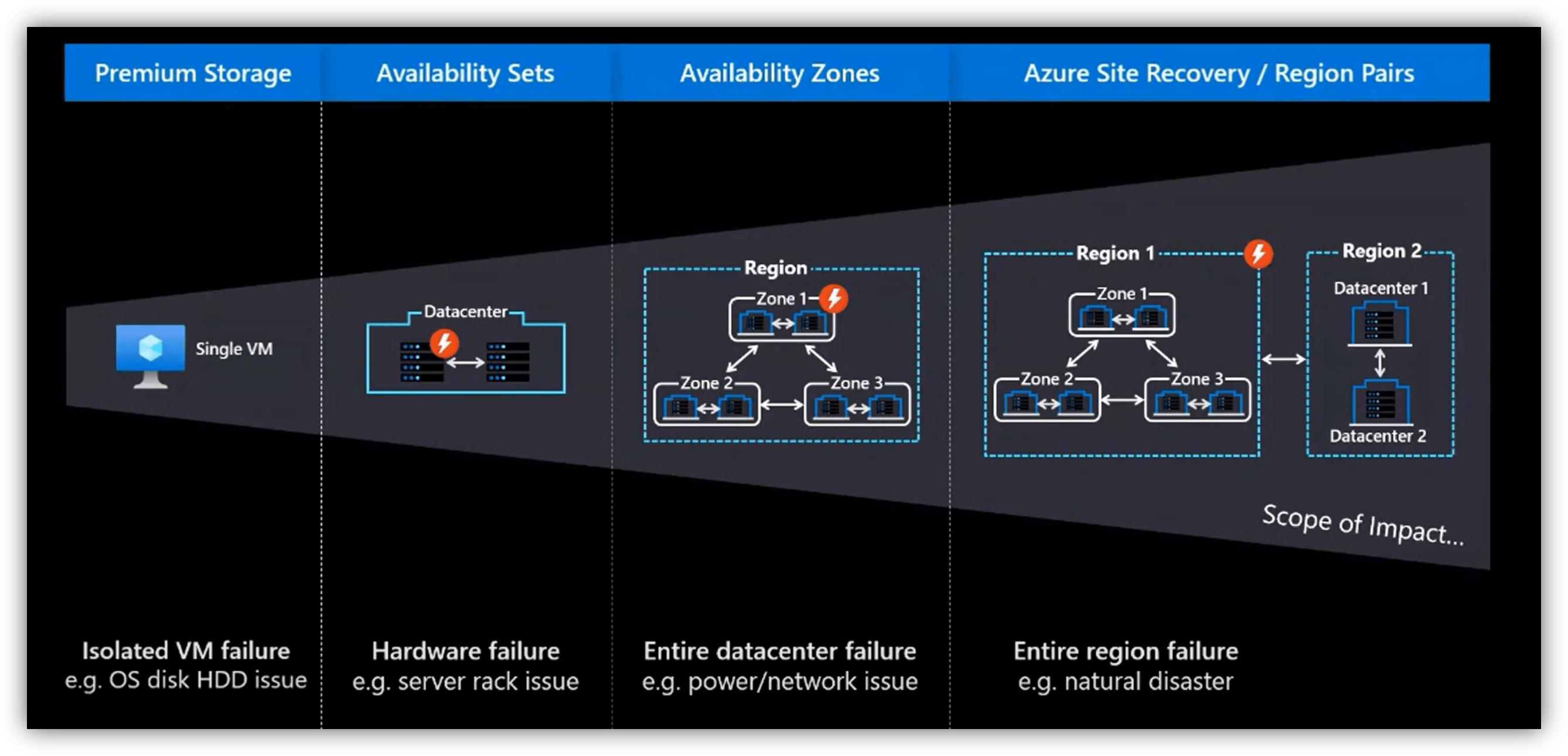

Reliability - Architecture Example

Health-routed traffic → AZ-redundant active region → paired-region warm standby → geo-replicated data → DLQs for poison messages. Each layer maps to a tested failure mode, not a hypothetical one.

Reliability - Maturity Progression

Security - Principles

• Zero Trust by default — verify explicitly, least privilege, assume breach on every flow
• Threat-model first (STRIDE) — map assets, boundaries & abuse cases before controls; each threat gets a control, owner, and timeline
• Identity is the perimeter — conditional, auditable verification on every request, human or workload
• Least privilege as a verb — PIM + JIT over standing roles; managed identities over secrets
• Encrypt & segment by default — data, networks, identities, runtime — sized to data classification

Security - Practices & Patterns

Security - Secure Development Lifecycle

Security - Key Metrics

Detection-first: dwell time & MTTD are the truth-tellers — Secure Score is hygiene.

Security - Architecture Example

1. Edge: Front Door + WAF + DDoS Protection
2. Ingress: App Gateway + mTLS; Entra ID + Conditional Access on every flow
3. Compute: Segmented app tier, private endpoints, managed identities (no secrets in code)
4. Data: Key Vault + CMK encryption; classified & labeled at rest
5. Detect: Defender for Cloud → Sentinel SIEM + SOAR playbooks for rapid containment

Blueprint goal: identity-bound, signal-driven, contained-by-design.

Security Maturity (Progression + Accelerators)

Cost Optimization - Principles

• Tagging-first ownership; budget guardrails follow
• Engineer elasticity; idle spend is a measurable target
• Tie every dollar to a business KPI — unit cost is the headline
• Treat anomalies as signals, not surprises
• Document cost vs reliability/perf trade-offs — they will be re-litigated

Maxim: Unmeasured cost is uncontrolled cost. Without ownership tagging, optimization is theatre.

Cost Optimization - Practices & Governance

• Policy-enforced tags (env, owner, costCenter) + budget alerts at 50 / 80 / 100% (CO:04)
• Autoscale on explicit triggers (CPU, queue depth, predictive); scheduled nonprod shutdown (CO:12)
• Rightsize quarterly; commitment portfolio = Reservations + Savings Plans (CO:05)
• Spot for batch & interruptible; storage lifecycle hot → cool → archive (CO:10)
• ML-driven anomaly detection → auto-route runbook on threshold breach (CO:03)

Emerging:

• AI / agent workload cost allocation — high variance, dedicated tags (CO:07)
• Flow-cost optimization (CO:09) + caching on expensive hot paths

Cost Optimization - Key Metrics

The headline is unit cost. Everything else is a lever to move it.

Cost Optimization - Architecture Example

1. Tag policy (deny-on-missing) + budget alerts at 50 / 80 / 100%
2. Autoscale by leading metric + Spot for batch + scheduled nonprod shutdown
3. Storage lifecycle (hot → cool → archive); retention tuned to data class
4. Cache + flow-cost trimming on expensive read paths
5. Cost Management anomaly insights → auto-route runbook + Teams alert
6. Unit-cost dashboard ($/txn, $/user) reviewed at monthly FinOps cadence

Blueprint Goal: Predictable unit economics with anomaly-driven self-correction.

Cost Optimization Maturity Progression

Operational Excellence - Principles

OpEx = the operating system around your workload (OE:01-OE:11 checklist).

• Shared ownership - build it, you run it (OE:01); blameless retros, not blame retros
• Instrument first; scale second (OE:07) - SLOs + error budgets govern release pace
• Progressive, reversible deploys (OE:11) - small batches, health-gated, fast rollback
• Standardize the routine; automate the frequent (OE:02, 05, 10) - IaC, runbooks, policy-as-code
• Structured incident response (OE:08) - defined roles, rehearsed runbooks, rapid recovery
• AI is integrated, not bolted on — threaded across L1–L5

Operational Excellence - Practices & Automation

• Gated CI/CD + policy-as-code supply chain (OE:06) - SBOM, signing, scan, immutable artifacts
• Progressive delivery (OE:11): canary / blue-green / deployment stamps, health-gated, with bake time
• Test strategy + plan per workload (OE:09): pyramid (unit → integration → E2E) + chaos + load
• Test in production with safeguards - feature flags, scoped canary, kill switches
• Unified observability spine (OE:07): instrument → collect → analyze → visualize
• Structured incident response (OE:08) + blameless retros → ADR feedback

Operational Excellence - AI Integration

AI-integrated (per OpEx maturity model — Feb 2026):

• Buy: Copilot for IaC / tests / queries; SRE agents; Sentinel / Defender AI triage
• Build: custom GenAI for KPI suggestions, canary tuning, alert dedup, runbook synthesis
• Agentic remediation — behind governance (PII masking, security trimming, human-in-loop)

AI is not bolted on at the end — it threads every maturity level, from task assist to predictive ops.

Operational Excellence - Key Metrics

DORA is the operating room. Levers: telemetry unification, AI-assisted triage, rollback drills.

Operational Excellence - Architecture Example

1. Gated PR → secure build (SBOM, scan, signed artifacts)
2. Canary + health-gated progressive rings (bake time per wave)
3. Unified telemetry spine - 4-phase pipeline + correlation IDs
4. AI-assisted alert correlation + automated remediation behind approvals
5. Blameless retro → ADR + runbook update (feedback closes the loop)

Blueprint Goal: High deploy frequency, low MTTR, learning compounds.

Operational Excellence - Maturity Progression

Performance Efficiency - Principles

• Negotiate business SLOs (latency / throughput) per critical flow (PE:01, PE:09)
• Just-in-time elastic scaling — capacity follows demand at runtime, with planning ahead of known peaks (PE:02)
• Partition & cache the hot path; profile the long tail (PE:05, PE:08)
• Baseline → measure → tune on evidence, never on guesswork (PE:04)

Maxim: Performance is a promise you must continuously verify.

Performance Efficiency - Practices & Patterns

• Production-like load & capacity tests pre-peak (PE:06)
• Autoscale on meaningful signals (queue depth, RPS, latency — not CPU alone)
• Layered caching: Front Door / CDN at the edge → Redis Enterprise on the hot path
• Partition / shard early; tune indexes for the real query; align scale units to the real bottleneck (PE:05, PE:08)
• Profile tail latency (P95 / P99) on critical flows (PE:09)
• Perf gates in CI/CD — block regressions before prod (PE:06, PE:12)

Performance Efficiency - Emerging Practices

• Predictive autoscale — ML-forecasted demand, provision before the spike, guardrail min/max
• Adaptive concurrency — KEDA, Functions / App Service Premium throttle on real pressure
• AI workload perf — token/sec SLOs, PTU sizing, prompt-cache reuse, prompt-length budgets
• HPC workloads — coupled compute, low-latency interconnect, placement-aware scale units

Establish a repeatable baseline before reaching for predictive or adaptive controls.

Performance Efficiency - Key Metrics

Levers: async patterns, layered caching, partitioning, predictive scale, adaptive concurrency.

Performance Efficiency - Architecture Example

1. Front Door edge cache + object chunking for large payloads
2. Stateless autoscaling API on signal-driven rules (queue / latency)
3. Async queue offload with adaptive concurrency on workers
4. Redis Enterprise hot path + partitioned data stores
5. Predictive autoscale + perf gates in CI/CD

Blueprint Goal: Linear scale within the P95 SLO; no surprises at P99.

Performance Efficiency Maturity Progression

Cross-Pillar Shared Levers

Trade-Offs Overview

Trade-Off Matrix

Pillar Interactions & Decision Anchors

Continuous Improvement & Pillar Maturity

Monthly drift scan → Quarterly deep review → Annual strategic recalibration.

Scenario 1: Healthcare PHI

Question: Best first-year pillar priority?

Scenario 2: Retail 10x Peak (Black Friday)

Question: Which architecture approach best balances readiness & cost risk?

Scenario 3: Legacy Batch Modernization

Question: Which modernization path optimizes learning velocity without over-investing early?

Scenario 4: Early-Stage Social App

Question: Which approach best balances runway conservation with adaptability?

Well-Architected Framework Service Guides

A decision-making tool, not a configuration manual.

• Pick & configure Azure components through the lens of all five pillars
• Highlight the features that actually move pillar outcomes - skip the rest
• Use as the first stop when a service lands on your architecture
• Pair with Advisor Score + WAF Review for an evidence-backed shortlist

Refreshed March 2026: SQL MI, MySQL flexible server, Container Apps, Event Grid, Event Hubs, Service Bus, Blob, Databricks, Virtual WAN - all now span all five pillars.

Well-Architected Workloads

A workload = app code + data + AI models + supporting infra, working together to deliver a business outcome.

• Align workload decisions to business outcomes, not service catalogs
• Balance functional requirements with non-functional trade-offs
• Integrate fundamentals, trade-offs, and ops best practices into one system
• Keep a living workload dossier: scope, personas (human + agentic), dependencies, tech-debt register, budget envelope, KPIs, maturity scores
• Workload team + centralized teams: who owns which guardrail?

Well-Architected Workloads Examples

• AI
• Azure Virtual Desktop
• Azure VMware Solution
• High Performance Computing (HPC)
• Mission-critical applications
• Oracle
• SaaS Solutions
• SAP

What To Do Monday

One concrete action per pillar — pick one row, land it this week, bring back evidence.

Modernizing cloud excellence isn't an event - it's a habit. One ADR, one drill, one baseline at a time.
