.NET In a Box

Containerizing
.NET Applications

Chris Ayers

Chris Ayers

Senior Customer Engineer
Microsoft

Twitter : @Chris_L_Ayers
Mastodon: @Chrisayers@hachyderm.io
LinkedIn: chris-l-ayers
Blog: https://chris-ayers.com/
GitHub: Codebytes

Agenda

  1. Software and Architecture
  2. Containerization Basics
  3. .NET and Containers
  4. Configuration
  5. Security
  6. Demos
  7. Questions

Software and Architecture

Microservices

  • Architectural style that structures an application as a collection of loosely coupled services.
  • Improved modularity
  • Applications are easier to develop, test, deploy, and scale.
  • Each service can be deployed independently, enabling faster iterations.

Cloud-Native Applications

  • Applications designed to capitalize on cloud computing frameworks.
  • Built and run in cloud environments.
  • Emphasize automation, scalability, and manageability.
  • Rely on containerization for deployment.

Build and Deployment Patterns

  • Rapid provisioning and scaling.
  • Uniform development environments.
  • Seamless compatibility with cloud services.
  • Observability and monitoring.

Make sure your application is ready for containers

  • Understand Dependencies
    • File Access
    • Authentication
    • Logging
    • OS Dependent components
    • Versions
  • State Management
    • Session State
    • Caching
    • Database
    • File system

.NET Version Support

.NET Version Support

.NET Version Support - Zoomed

center

Azure Migrate application and code assessment for .NET

AppCat

DAPR - Distributed Application Runtime

Dapr provides integrated APIs for communication, state, and workflow.

Containerization

Containers vs. Virtual Machines (VMs)

Container

  • Lightweight images (MBs)
  • Fast (seconds to start)
  • Shared OS can pose security concerns
  • Efficient resource utilization

Virtual Machines (VMs)

  • Larger images (GBs)
  • Slow (OS needs full init)
  • Superior isolation
  • Higher resource use

Let's define a few Container Terms

Open Container Initiative (OCI)

  • A project under the Linux Foundation.
  • It promotes interoperability and compatibility across different tools and platforms.
  • OCI has three main specifications:
    • Runtime Specification
    • Image Specification
    • Distribution Specification

How its all Connected


Container Images

Container images bundle application code with the necessary runtime, libraries, and configurations. They utilize a Layered File System for efficient storage and distribution:

  • Immutable Layers: Each layer is fixed once created, ensuring consistency.
  • Reusability: Shared layers across images reduce storage and speed up deployments.

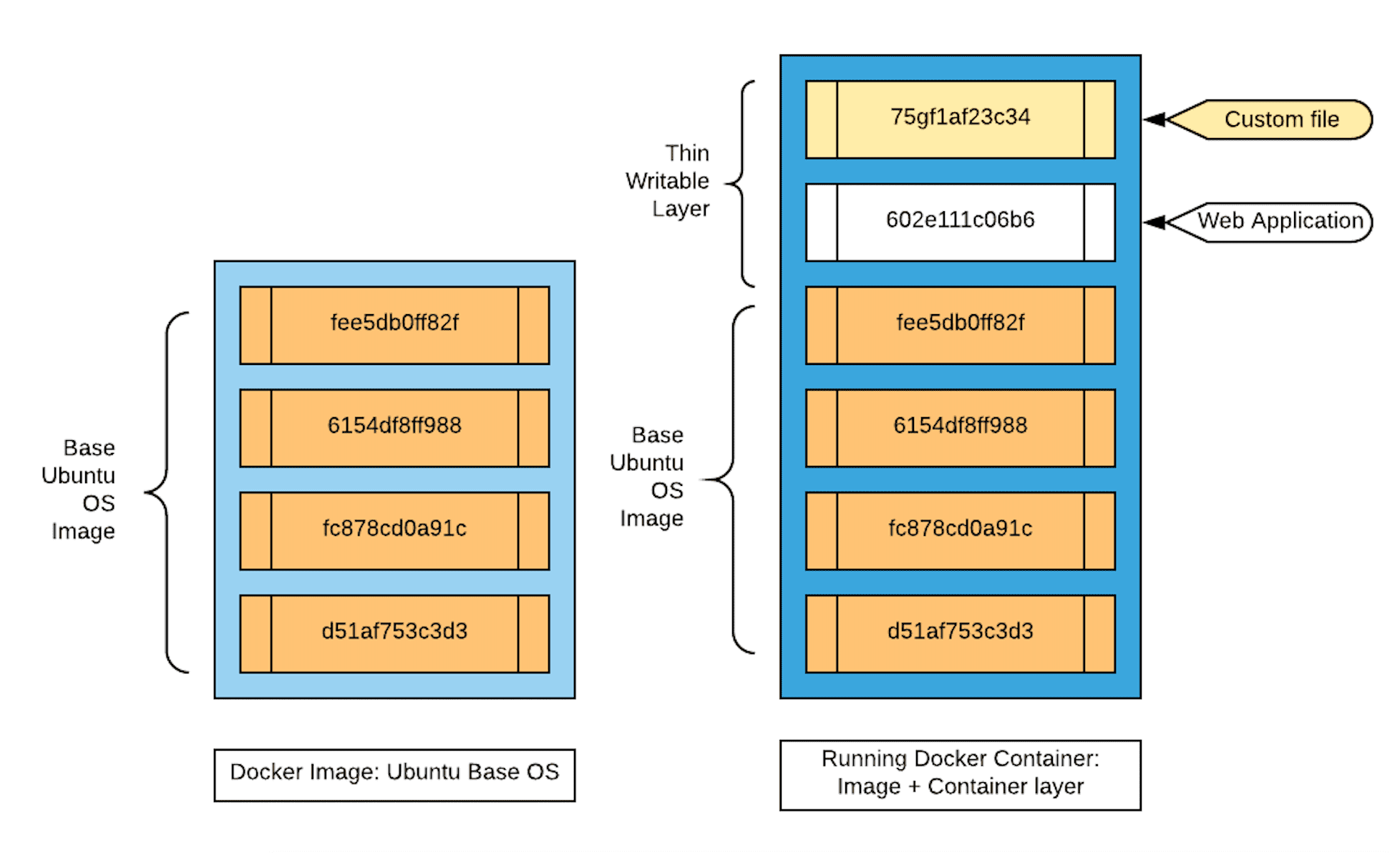

Exploring Image Layers

  • Efficiency Through Layering: Image layers maximize reusability and minimize storage requirements by sharing common layers between images.

Container Registries

Central hubs for storing, managing, and distributing container images, featuring:

  • Version and access control for secure collaboration.
  • Security scanning to detect vulnerabilities.
  • CI/CD integration for automated deployment workflows.


Container Runtimes

Container runtimes are the engines that run containers and manage their lifecycles, with different levels of abstraction:

  • High-Level Runtimes: Offer ease of use and extended features for developers.
  • Low-Level Runtimes: Focus on performance and fundamental container operations.



Image Tags: Stable vs Unique

Stable Tags

Stable tags help maintain base images for container builds. Avoid using them for deployments since they receive updates that might cause inconsistencies in production. Examples include:

  • latest
  • stable
  • v1.0
  • production

Unique Tags

Unique tags track specific builds or versions of an image. They often include build numbers, commit hashes, or timestamps. These are great for CI/CD pipelines and testing environments. Examples include:

  • sha256:1234567890
  • build-1234
  • 2022-01-01
  • 1.0.2

.NET and Containers

  • Portability
  • Consistency
  • Scalability
  • Isolation
  • Security
  • Resource Efficiency

Official .NET Container Images

Microsoft provides official .NET container images for various scenarios, including:

  • Development: .NET SDK images for building and testing applications.
    • dotnet/sdk: .NET SDK
  • Runtime: .NET Runtime images for running applications.
    • dotnet/aspnet: ASP.NET Core Runtime
    • dotnet/runtime: .NET Runtime
    • dotnet/runtime-deps: .NET Runtime Dependencies

Dockerfiles

  • Basics: Dockerfiles define the steps to create a container image for applications.
  • Structure: Includes base image selection, copying application files, and setting up entry points.
  • Customization: Tailoring Dockerfiles for specific application requirements.
    dockerfiles

Build & Security Best Practices

  • .dockerignore: Exclude non-essential files to speed up builds and enhance security.
  • Multi-Stage Builds: Separate build and output stages to reduce image size and include only necessary files.
  • Image Optimization:
    • Use minimal base images and avoid unnecessary packages.
    • Leverage caching for faster builds.
    • Regularly update base images to patch vulnerabilities.
    • Scan images for security issues.

Dockerfile

FROM mcr.microsoft.com/dotnet/sdk:8.0 AS build-env
WORKDIR /App

# Copy everything
COPY . ./
# Restore as distinct layers
RUN dotnet restore
# Build and publish a release
RUN dotnet publish -c Release -o out

# Build runtime image
FROM mcr.microsoft.com/dotnet/aspnet:8.0
WORKDIR /App
COPY --from=build-env /App/out .
ENTRYPOINT ["dotnet", "DotNet.Docker.dll"]

.NET Containers Without Dockerfiles

  • Simplicity: The dotnet CLI enables building and publishing containers directly to a registry.
  • Direct Publish: Specify your target registry and repository in the project file or command line.
  • Example: Publish a .NET app as a container using the -p:PublishContainer option.
  • Options

DEMOS

Ideal .NET Container Images

Microsoft has been providing .NET Container images for almost 10 years.
Consistent Themes

  • Small (faster registry pulls)
  • Secure (non-root by default, no shell or tools)
  • Compliant (minimal dependencies)
  • Composable (add localizations, etc. as needed)
  • Compatible (glibc vs musl libc)
  • Supported (long-term support)

DEMOS

Configuration

.NET Configuration

Environment Variables

Externalize app settings for easy updates without image rebuilds.

  • Define variables in deployment manifests or service configurations.
  • Simplify configuration management.
  • Enhance application portability across environments.
  • ASPNETCORE_URLS
  • ASPNETCORE_HTTP_PORTS
  • ASPNETCORE_HTTPS_PORTS

Docker Compose

catalog-api:
    image: eshop/catalog-api
    environment:
      - Endpoint=XXXXXX
    expose:
      - "80"
    ports:
      - "5101:80"

Kubernetes Manifest

spec:
  template:
    spec:
      containers:
      - name: sampleapi
        image: codebytes/sampleapi:1.0.1
        env:
          - name: "ASPNETCORE_ENVIRONMENT"
            value: "Production"
          - name: "ASPNETCORE_FORWARDEDHEADERS_ENABLED"
            value: "true"

Azure App Configuration Integration

  • Centralized Management: Store all application settings and feature flags.
  • Dynamic Updates: Refresh settings without redeploying or restarting applications.
  • Security: Leverage Managed Identities for secure access without credentials in code.

Securely Managing Secrets

CSI Secret Store & Azure KeyVault

Azure Key Vault for Sensitive Data

  • Secure Storage: Keep application secrets, keys, and certificates in a secure vault.
  • Integration: Easily integrate with .NET applications using the Azure SDK.
  • Access Control: Fine-grained permissions for secure access management.

CSI Secret Store & .NET Integration

  • Securely store and manage secrets for .NET applications in Kubernetes.
  • Features:
    • Automates secret injection into .NET containers at runtime.
    • Leverages Kubernetes' native capabilities for enhanced security.
    • Simplifies secret management.
    • Ensures sensitive data is securely handled and easily accessible to authorized containers only.

Security

Container Scanning in .NET

Ensuring Security and Compliance

Identify security vulnerabilities and compliance issues in container images.

  • Tools and Practices:
    • Utilize tools like Qualys, Synk, Trivy, or Docker Scan.
    • Regularly scan images during development and before deployment.

Container Security: Root vs. Non-Root Users

Running Containers as Root

  • Default Behavior: Many containers run as root by default for ease of use.
  • Risks:
    • Increased attack surface if the container is compromised.
    • Potential for escalated privileges on the host system.
  • Security Practices:
    • Minimize use of root privileges.
    • Implement least privilege principles for container processes.

Use Non-Root Users

  • Enhanced Security: Running as a non-root user reduces risks of privilege escalation.
  • Benefits:
    • Limits the impact of a security breach within the container.
    • Complies with security best practices and regulatory requirements.
  • Limitations:
    • May require additional configuration for certain applications.

Kubernetes Restricted Policy

The Restricted policy enhances security for critical applications by enforcing pod hardening practices.

    spec:
      securityContext:
        runAsNonRoot: true
      containers:
      - name: aspnetapp
        image: mcr.microsoft.com/dotnet/samples:aspnetapp-chiseled
        ports:
        - containerPort: 8080

Learn more about Kubernetes Pod Security Standards

Demos

Azure Developer CLI (azd)

  • azd init accelerates containerization for .NET apps, preparing them for Azure deployment.
  • Generates Dockerfiles and Azure resources automatically.
  • Supports Azure Container Apps (ACA) and Azure Kubernetes Service (AKS) deployment.
  • Simplifies setup and abstracts Docker/Kubernetes complexities for rapid Azure deployment.

.NET Aspire Overview

  • Provides an opinionated framework for building observable, distributed .NET applications ready for the cloud.
  • Offers a suite of NuGet packages for common cloud-native application needs.
  • Facilitates the development of microservices and distributed apps with seamless service integration.

Questions?
