Crafting Resilient and Unbreakable Azure Solutions

Chris Ayers

Senior Software Engineer
Microsoft

Chris Ayers

Senior Software Engineer
Azure CXP AzRel
Microsoft

BlueSky: @chris-ayers.com
LinkedIn: - chris-l-ayers
Blog: https://chris-ayers.com/
GitHub: Codebytes
Mastodon: @Chrisayers@hachyderm.io
Twitter: @Chris_L_Ayers

Agenda

  • Context & Why Reliability Matters
  • Business & Non-Functional Requirements
  • Architecture
  • Infrastructure / Platform
  • Software / Workload Resilience
  • Operations & Observability
  • Governance & Enablement
  • Conclusion & Q&A

Reliability

Why Reliability Matters

A system is considered "reliable" if it can consistently serve users under normal or abnormal conditions.

  • Reliability in distributed systems involves:
    • Consistent performance despite failures.
    • Graceful degradation when certain components become unavailable.
    • Rapid recovery within acceptable time limits.

Understanding Reliability and Resiliency

  • Failures are inevitable in distributed systems
  • Workloads must detect, withstand, and recover from failures within acceptable timeframes
  • Ensuring availability for users to access workloads as promised
  • Failures impact revenue, reputation, and customer trust

FAILURE IS ALWAYS AN OPTION

Financial Impact of Downtime

  • Revenue Loss: Downtime can cost businesses over $1 million per hour, especially for e-commerce and online services.
  • Increased Expenses: Includes emergency maintenance, staff overtime, and potential penalties for SLA breaches.
  • Legal Liabilities: Potential lawsuits from customers or clients affected by downtime.
  • Insurance Challenges: Downtime can affect insurance coverage and premiums.
  • Operational Costs: Additional costs for restoring systems, data recovery, and preventive measures to avoid future downtime.

Real-World Downtime Costs

  • 77 hours (≈3 days) median annual downtime for high-impact outages
  • $146 million median annual cost of outages
  • 30% of engineering time spent addressing disruptions
    • Equals 12 hours per engineer weekly (based on 40-hour week)

Source: New Relic 2024 Observability Forecast

Reliability Levels

Level Monthly Downtime Annual Downtime Cost
99.9% 43.8 minutes 8.75 hours $
99.95% 21.9 minutes 4.375 hours $$
99.99% 4.38 minutes 52.6 minutes $$$
99.995% 2.19 minutes 26.3 minutes $$$$
99.999% 26 seconds 5.25 minutes $$$$$

https://uptime.is/five-nines

How Do We Measure Reliability?

SLI (Measure) SLO (Target) Error Budget (Allowable Failure) SLA (External Commitment)
Service Level Indicator Service Level Objective 1 - SLO (consumable failure/time) Service Level Agreement
Metric of user experience (e.g., success %, p95 latency) Reliability goal over window (e.g., 99.9% / 30d) Remaining time/requests that may fail before action Contract / credits / penalties
Assess actual service quality Define acceptable reliability Govern release pace & risk appetite Formalize promises & remedies
API success rate per request 99.95% successful responses (30d) 0.05% errors ≈21.9 min @ 99.95% 99.9% monthly availability w/ credits

SLA Pyramid

Understanding RPOs and RTOs

  • Recovery Time Objective (RTO): Maximum acceptable downtime before services must be restored
  • Recovery Point Objective (RPO): Maximum acceptable data loss during a disruption

Business & Non-Functional Requirements Layer

From Intent to Quantified Reliability

Establish resilience expectations before selecting technology:

  • Define critical user journeys & classify components (critical vs. degradable)
  • Quantify reliability targets (SLOs, error budgets, RTO/RPO)
  • Align trade-offs early (cost, performance, security, operations)

Business Requirements

  • Gather business requirements focusing on the workload's intended utility
  • Cover user experience, data, workflows, and unique constraints or sensitivities
  • Clearly state expectations and confirm goals are feasible and documented
Approach Description
Quantify Success Set targets for components, flows, and the system
Compliance Ensure predictable outcomes for sensitive flows
Platform Commitments Understand SLAs, limits, and regional constraints
Dependencies Track dependencies and implement resilient design patterns

Resilience Requirements

  • Continue operating despite failures
  • Prepare for outages and resource shortages
  • Enable graceful degradation
Strategy Implementation
Critical vs. Degradable Prioritize by impact
Failure Points Design for error handling
Self-Preservation Isolate faults, mitigate failures
Scalability Handle spikes and regional issues
Redundancy Eliminate single points of failure

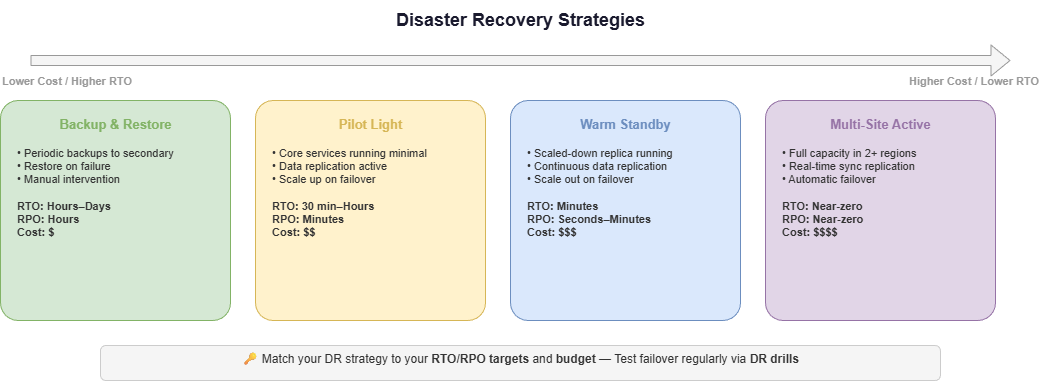

Recovery Requirement

  • Recover gracefully from all failure types
  • Plan for disaster even in resilient systems
  • Prepare for data layer corruption
Strategy Implementation
Recovery Plans Component coverage with regular drills
Data Repair Trusted backups with immutable copies
Self-Healing Automated detection and remediation

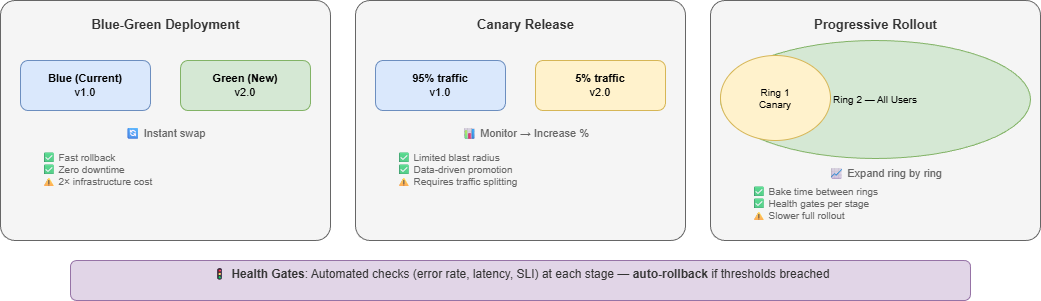

Ephemeral Units Side-by-side deployments with zero downtime

Operational Readiness

  • Shift left to anticipate failures early
  • Test failures in development
  • Ensure cross-team visibility
  • Use observability for rapid remediation
Strategy Implementation
Observable Systems Aggregate telemetry for holistic health views
Failure Simulation Validate recovery metrics with realistic tests
Automation Minimize human error and ensure consistency
Continuous Learning Improve from real production incidents
Proactive Monitoring Prioritize alerts for active failures

Keep It Simple

  • Avoid overengineering architecture, code, and operations
  • Simplicity reduces inefficiencies and misconfigurations
  • Maintain a balanced approach to avoid single points of failure

Trade-Offs

center

  • Align trade-offs with business priorities
  • Use scenario planning to assess impacts
  • Continuously iterate and monitor performance

Azure Well-Architected Framework

  • Provides best practices and guidance for building high-quality Azure solutions.
  • Ensures workloads are reliable, secure, efficient, and cost-effective.
  • Azure Well-Architected Framework

Microsoft Azure Well-Architected Framework Pillars

Reliability Security Cost Optimization Operational Excellence Performance Efficiency
Resiliency, availability, recovery Protect data, detect threats, mitigate risks Budgeting, reducing waste, efficiency Observability, DevOps practices, safe deployments Scalability, load testing, performance monitoring

Reliability Trade-Offs with Other Pillars

Pillar Prioritizing Reliability Prioritizing Other Pillar
Cost Optimization • Implement Redundancy (multi-region)
• Extensive Monitoring & Drills
• Over-Provision for unexpected spikes		 • Single-Region setups with minimal redundancy
• Reduce Operational Costs (simpler monitoring)
• Right-Size resources to save expenses
Security • Replication & Backups expand attack surface
• Faster Recovery may bypass security controls
• Delay Patches to reduce downtime		 • Minimize Attack Surface
• Strict Controls remain active under stress
• Frequent Patching even with disruptions

Reliability Trade-Offs with Other Pillars (Continued)

Pillar Prioritizing Reliability Prioritizing Other Pillar
Operational Excellence • Complex Architectures (multi-region, failover)
• Extensive Documentation & Training for DR
• Continuous Testing adds overhead		 • Simple Architecture
• Streamlined Knowledge Base
• Less Overhead in daily operations
Performance Efficiency • Redundant Writes & Replication add latency
• Failover Logic can slow requests
• Over-Provision may reduce performance tuning		 • Lean Deployments maximize throughput
• On-Demand Scaling with minimal buffer
• Focus on Speed over recovery measures

Architecture Layer

Structuring for Failure Containment

Focus on failure domains, redundancy strategy, and dependency design before implementation.

Failure Mode Analysis (FMA)

Proactive Identification

  • Recognize potential weaknesses before outages occur
  • Use checklists, post-mortems, dependency mapping
  • Prioritize by user impact & blast radius
  • Separate rare/high-impact from frequent/low-impact

Effective Mitigation

  • Architect graceful degradation & fallbacks
  • Instrument for fast anomaly detection
  • Automate failover & data replication where feasible
  • Document hypotheses & validate via game days

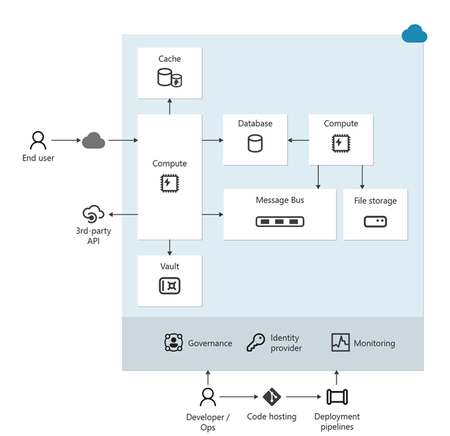

Failure Examples

Failure Examples

Single Points of Failure (SPOFs)

Understanding SPOFs

  • Single component whose failure halts critical flow
  • Occur in infra, data, code paths, people/process
  • Early detection reduces mean time to mitigation

Mitigation Strategies

  • Redundancy & diversity (multi-zone / multi-instance)
  • Load balancing & partitioning
  • Automated failover runbooks
  • Regular design & dependency reviews

Active-Active vs. Active-Passive

Active-Active: Multiple instances process requests simultaneously.
center

Active-Passive: Primary instance processes traffic; secondary is on standby.
center

Enhancing Resiliency through Architecture

Fault Isolation

  • Prevents cascading failures and maintains availability
  • Distributes workloads across multiple data centers
  • Handles datacenter-specific failures with built-in mechanisms

Reliability Best Practices

  • Deploy across multiple Availability Zones
  • Leverage multi-region approaches when necessary
  • Use landing zones and reference architectures
  • Apply design patterns appropriate to your workload

Infrastructure / Platform Layer

Foundation for Consistent Resilience

Automated, policy-driven environments (Landing Zones, AVM, APRL) reduce variance & misconfiguration risk.

Azure-Customer Shared Responsibility Model

center

Azure Regions and Regional Strategy

Azure Regions

  • 60+ regions worldwide with defined data residency boundaries
  • Datacenters connected by low-latency, high-capacity networks
  • Some regions are sovereign clouds (e.g., Azure Government)
  • Explore Regions

Region Pairs & Alternatives

  • Region Pairs: Built-in geo-redundancy (e.g., East US ⟷ West US)
    • Support sequential updates and prioritized recovery
    • Note: Pairing doesn't guarantee automatic failover
  • Non-paired Regions: Rely on availability zones
    • Services can replicate across any region combination
    • Choose regions based on business needs and compliance

Azure Availability Zones

center

Azure Availability Zones Infrastructure

  • AZs are physically separate datacenters within an Azure region
  • Each zone has independent power, cooling, and networking
  • Low-latency (<2ms) connections reduce local outage impact
  • Not all regions have AZs; verify availability
  • View Region Support

Types of Availability Zone Support

  • Zone-Redundant: Automatically distributed across zones
  • Zonal: Pinned to a specific zone
  • Zone-Resilient: Designed to survive zone failures
  • Non-Zonal (Regional): No zone-specific deployment
  • View Services Support

Zonal Resources

  • Pinned to a specific availability zone.
  • Combine multiple zonal deployments for high reliability.

Zonal Resources

Customer Responsibilities:

  • Deploy and manage resources in each availability zone
  • Configure and manage data replication
  • Use a load balancer to distribute requests
  • Choose active-passive or active-active models
  • Handle failover when an AZ becomes unavailable

Zone-Redundant Resources

  • Spread automatically across multiple availability zones.
  • Microsoft manages request distribution and data replication.
  • Automatic failover if a zone goes down.

Zone-Resilient vs. Non-Zonal (Regional)

Zone-Resilient

  • Created as zone-redundant or deployed zonally across multiple zones
  • Survives a single zone outage by design
  • Minimizes downtime as data and services continue in healthy zones

Non-Zonal (Regional)

  • Not explicitly configured for zone redundancy
  • May be placed in any zone and moved automatically
  • Resources may go down if that zone experiences an outage

Availability Zones and Azure Updates

Update Deployment Strategy

  • Microsoft deploys updates to one AZ at a time
  • Minimizes impact on active workloads
  • Running across multiple zones ensures continuous service during updates

Data Replication: Storage Options

storage options center

Software / Workload Layer

Runtime Resilience Behaviors

Embed failure-aware logic: timeouts, retries, backoff, bulkheads, circuit breakers, idempotency, hedging.

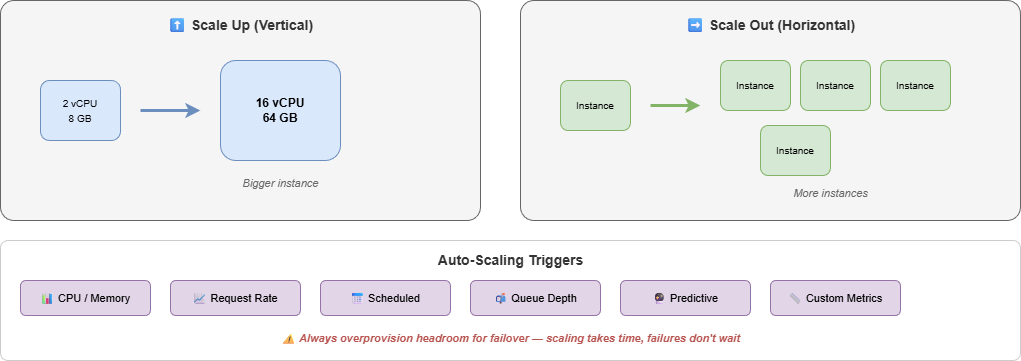

Load Testing

Key Benefits

  • Prevents Surprises: Identify capacity issues before production
  • Validates Scaling: Ensure your auto-scaling works properly
  • Finds Weaknesses: Spot resource exhaustion and memory leaks

Implementation

  • Cost-Effective: Much cheaper than emergency scaling during incidents
  • Azure Tools: Azure Load Testing service with JMeter support
  • Best Practice: Test with realistic user patterns and data volumes

Chaos Engineering

Core Principles

  • Controlled Failure: Introduce failures in controlled environments
  • Best Practice: Start small with clear abort conditions
  • Continuous Process: Build complexity as confidence increases

Key Azure Scenarios

  • Availability Zone Outages: Test region resiliency
  • Network Latency: Simulate connectivity issues
  • Service Throttling: Test quota and limit handling
  • Identity Failures: Test credential expiration response

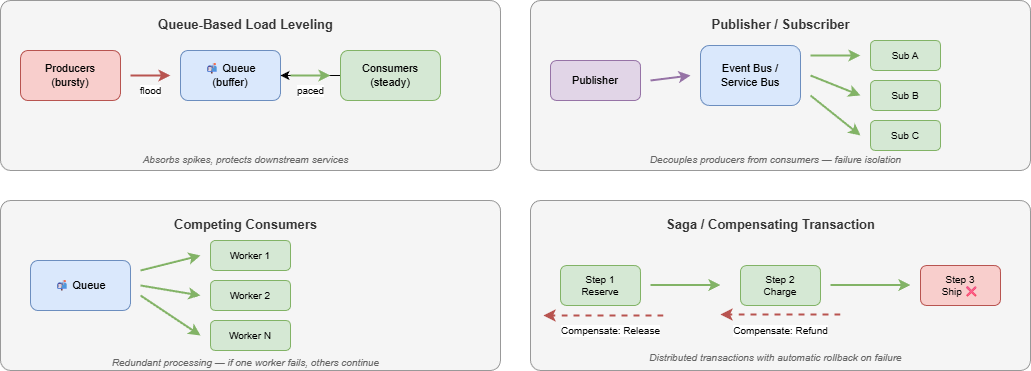

Resilience Patterns

Pattern Problem Solved Key Considerations
Timeout Prevent hanging on slow dependency Set < expected p95 latency; combine with retries
Retry + Exponential Backoff + Jitter Transient faults (throttling, brief network blips) Cap attempts; respect idempotency
Circuit Breaker Failing dependency causing cascading latency Trip on error rate/latency; half-open probes
Bulkhead Isolation One noisy component Resource partitioning
Dead Letter Queue Bad messages blocking progress Monitor & replay with alerting
Graceful Degradation Maintain partial service Feature flags, fallback data

Select patterns based on observed failure modes; measure impact via SLIs & error budget consumption.

Azure SDK Resiliency Best Practices

Concern Guidance Notes / Azure SDK Features
Retry Policy Use built-in exponential backoff + jitter; cap total elapsed time SDK defaults (3–5 retries). Tune max attempts & overall operation timeout
Idempotency Make write & queue ops safely repeatable Use idempotency keys / message IDs to dedupe
Timeouts Combine per-attempt timeout + overall deadline Use CancellationToken / request context to abort quickly
Throttling (429 / 503) Honor Retry-After; escalate if sustained Log retry reason & emit metric for throttled calls
Circuit Breaking Wrap high-risk dependencies with Polly / resilience lib Trip on error rate/latency. Half-open probes restore flow

Azure SDK Resiliency Best Practices Continued

Concern Guidance Notes / Azure SDK Features
Connection Reuse Reuse client instances (thread-safe) Avoid per-request instantiation to prevent socket exhaustion
Observability Correlate Request-Id / Traceparent; record retry count Enable SDK logging + OpenTelemetry exporters
Partial Failure Process successes; isolate & retry failed items Batch ops return per-item status; implement granular retry
Backpressure Limit concurrency & queue length; shed excess Use bounded channels / semaphores; fail fast when saturated

Engineer for transient failure as the norm: fast fail, bounded retries, measurable outcomes.

Operations & Observability Layer

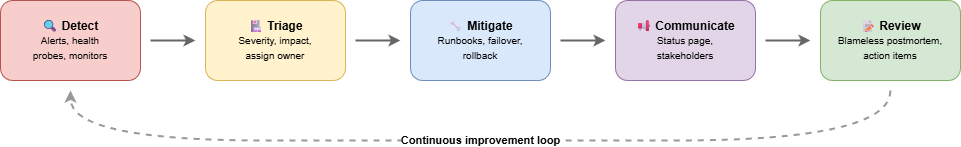

Detect, Respond, Learn

Emphasize fast detection, validated recovery paths, and continuous improvement through data & drills.

OpenTelemetry

  • Open standard for generating, collecting, and exporting telemetry data (traces, metrics, logs)
  • Supported by major cloud providers, including Azure Monitor, AWS CloudWatch, and Google Cloud Operations
  • Enables vendor-neutral instrumentation and observability across distributed systems

Metrics & Error Budgets

Concept Formula / Definition Example
Availability SLI (Successful Requests) / (Total Requests) 99,950 / 100,000 = 99.95%
Latency SLI % of requests under threshold 95% < 250ms (p95), 99% < 400ms
Error Budget 1 - SLO SLO 99.9% => 0.1% budget
Burn Rate Budget consumed / Time elapsed fraction 2× burn -> intervene early
MTTR Avg restore time for incidents Track trend downwards

Error Budget Response Guide:

  • Burn Rate > 4× for 1h: Freeze risky deploys; incident review.
  • Burn Rate 2× sustained: Reduce change volume; add mitigations.
  • Burn Rate nominal (<1×): Continue roadmap; schedule chaos tests.

Azure Service Groups

Health Metrics Aggregation

  • Cross-environment health: Aggregate health metrics from multiple apps and environments
  • Resource type inventory: Unified views across subscriptions
  • Unified monitoring: Single Service Group provides health visibility across management groups

Least-Privilege Access

  • Selective permissions: Service Groups don't inherit member permissions
  • Role-based viewing: Assign different users access to same Service Group with varying resource visibility
  • Monitoring metrics: Apply minimal privileges for metrics access without resource management rights

Mission-Critical Health Modeling

Core Concepts

  • Layered health model: Define health from individual resources to user flows
  • Business-aligned scoring: Health reflects business priorities with clear healthy/unhealthy states
  • Automated calculation: Use metrics and thresholds for real-time health scores

Implementation

  • Unified observability: Aggregate logs, metrics, traces in Log Analytics workspaces
  • Visual dashboards: Azure Monitor or Grafana for real-time insights
  • Proactive response: Integrate with alerting and automated incident response

Business Benefits

  • Early Issue Detection: Find problems before customers do
  • Increased Confidence: Better team preparedness for incidents
  • Reduced Recovery Time: Faster MTTR during real outages
  • Trust Building: Demonstrate resilience to stakeholders

Practical Implementation

  • Start Simple: Begin with critical paths and core functions
  • Game Days: Schedule cross-team incident response exercises
  • Continuous Process: Iterate on tests as your architecture evolves
  • Documentation: Track findings and improvements

Governance & Enablement Layer

Guardrails, Standards, Acceleration

Tools & frameworks that reduce variance, enforce policy, and speed safe delivery.

  • Utilize established Azure reference architectures for reliability.

  • Leverage available documentation and best practices for consistency and effectiveness.

Azure Landing Zones

Secure Structure

  • Azure Landing Zones create a secure, organized foundation for Azure environments.
  • Enforce identity, network, and governance policies at scale.

Reliable Implementation

  • A standardized environment supports consistent deployments.
  • Simplifies resource management and reduces misconfigurations.

Azure Architecture Center

  • Centralized repository of best practices, reference architectures, and design patterns for Azure solutions.
  • Provides comprehensive guidance on building reliable, scalable, and secure cloud solutions.
  • Offers scenario-specific architectures, recommended practices, and templates to accelerate your workload design.

Well-Architected Workloads

  • Align workloads with business outcomes using the Azure Well-Architected Framework
  • Balancing functional requirements and nonfunctional trade-offs
  • Integrate design fundamentals, trade-offs, and operational best practices

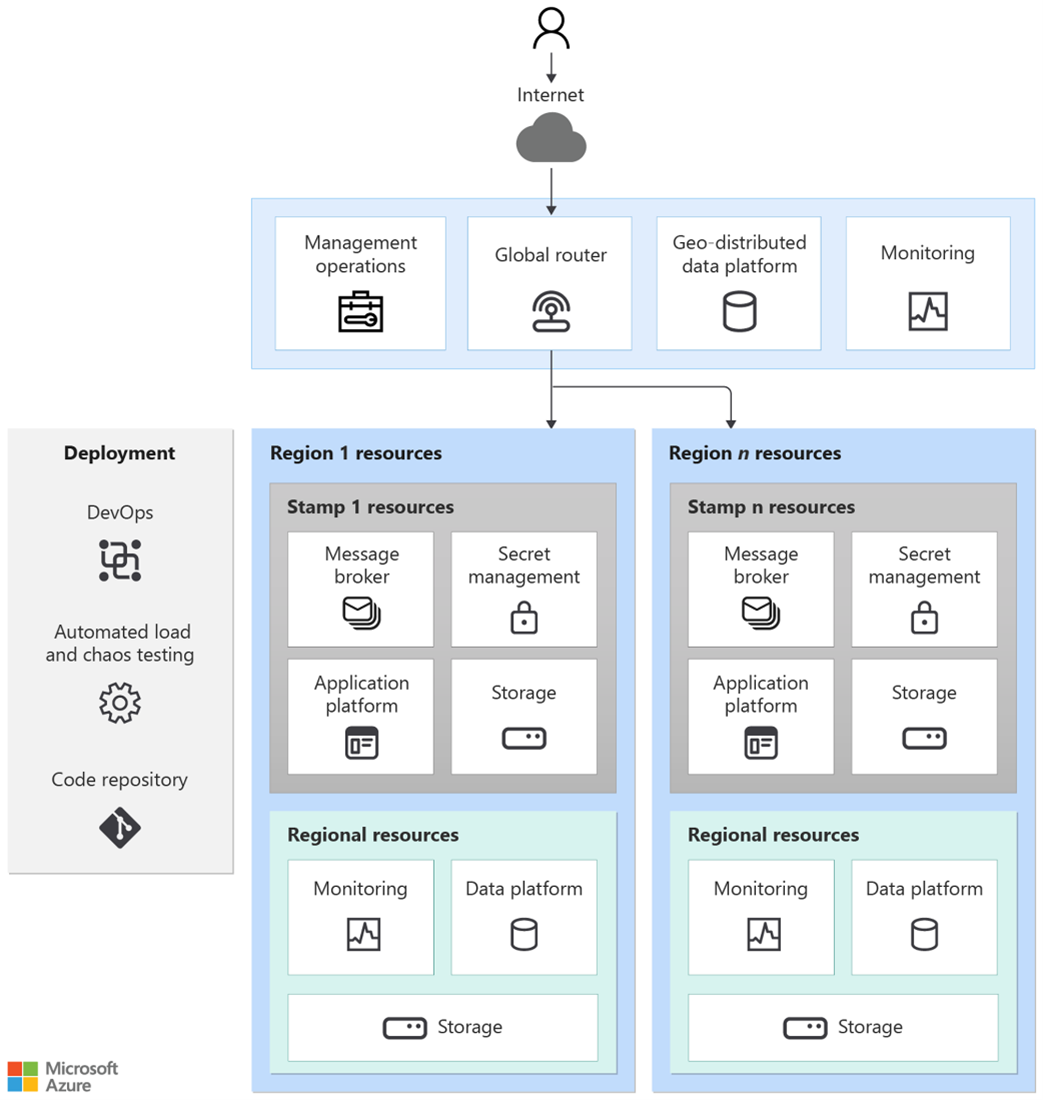

Mission-Critical Workloads

Learn about designing mission-critical applications on Azure for high availability, reliability, and performance:

Enterprise Web App Patterns

Guidance for web apps on Azure, offering prescriptive architecture, code, and configuration aligned with the Well-Architected Framework:

Azure Verified Modules (AVM)

What is AVM?

  • Official Microsoft initiative to consolidate Infrastructure-as-Code standards
  • Multi-language support - Bicep, Terraform, and more
  • WAF-aligned modules with built-in best practices
  • Community-driven with devolved ownership approach

Core Value Proposition

  • Accelerate development with pre-built, tested modules
  • Ensure compliance with Azure best practices
  • Reduce misconfigurations through standardized templates
  • Enhance security with default secure configurations

AVM Module Classifications

Module Type Purpose Key Features
🏗️ Resource Single resource deployment WAF best practices, secure defaults, shared interfaces
🎯 Pattern Multi-resource architectures Proven designs, composable blocks, enterprise-ready
⚙️ Utility (Preview) Reusable functions Common helpers, cross-module functionality

AVM and Reliability

Built-in Resilience

  • Availability Zones configured by default where supported
  • Disaster recovery patterns in multi-region deployments
  • Monitoring integration with Azure Monitor and Application Insights
  • Security hardening with least-privilege access

Enterprise Ready

  • Well-Architected Framework alignment across all pillars
  • Production-tested configurations and patterns
  • Automated compliance checks and validation
  • Continuous updates with latest Azure capabilities

APRL: Azure Proactive Resiliency Library

What is APRL?

  • Curated catalog of resiliency recommendations for Azure workloads
  • Azure Resource Graph (ARG) queries for identifying non-compliant resources
  • Community-driven with 75+ contributors and active maintenance
  • Open source under MIT license

Key Features

  • Resource-specific guidance for 100+ Azure services
  • Automated compliance checks with ready-to-use ARG queries
  • Well-Architected Framework alignment with reliability best practices
  • Specialized workload patterns for common scenarios

APRL Library Structure

🏗️ Azure Resources

  • Service-specific resiliency recommendations
  • Individual Azure service best practices
  • Resource configuration guidance

🔧 Specialized Workloads

  • End-to-end workload patterns
  • Industry-specific scenarios
  • Multi-service architectures

📊 Azure Resource Graph Queries

  • Automated compliance detection
  • Resource inventory and assessment
  • Policy enforcement support

🛡️ WAF Integration

  • Well-Architected Framework alignment
  • Reliability pillar implementation
  • Assessment and review tools

Azure Review Checklists

What They Are

  • Design validation tool for Azure architectures and workloads
  • Community-driven checklists based on Microsoft best practices
  • Version-controlled alternative to Excel spreadsheets
  • Collaborative approach with GitHub integration

Key Benefits

  • Proactive issue detection before deployment
  • Standardized reviews across teams and projects
  • Time-saving with pre-built checklists
  • Continuous improvement through community contributions

Azure Review Checklists

Supported Checklists & Services

Service Category Checklist Status Key Focus Areas
Foundation Azure Landing Zone GA Governance, Security, Networking
AI/ML AI Landing Zone Preview AI services, responsible AI, governance
Containers AKS, ARO GA/Preview Security, scalability, monitoring
Applications App Service, Spring Apps GA/Preview Performance, security, DevOps
Data SQL Migration, SAP Preview/GA Migration, performance, compliance
Networking Application Delivery GA Load balancing, security, performance
Cost Management Cost Optimization GA Resource optimization, monitoring
DevOps Azure DevOps Preview Pipeline security, compliance

Conclusion

  • Design Principles: Focus on resilience, recovery, and simplicity for robust workloads
  • Trade-offs: Every decision impacts cost, security, operational excellence, and performance
  • Proactive Reliability: Use Failure Mode Analysis to anticipate and mitigate failures
  • Continuous Improvement: Leverage Availability Zones, multi-region deployments, chaos engineering, and load testing

Thank You!

Chris Ayers

Senior Software Engineer
Azure CXP AzRel
Microsoft

BlueSky: @chris-ayers.com
LinkedIn: - chris-l-ayers
Blog: https://chris-ayers.com/
GitHub: Codebytes
Mastodon: @Chrisayers@hachyderm.io
Twitter: @Chris_L_Ayers

# Roles & Layer Alignment | Role | Layer | Core Focus (Concise) | |------|-------|----------------------| | Product Owner | Business/NFR | Journeys, SLO/RTO/RPO, trade-offs | | Architect | Architecture | Topology, SPOF removal, patterns | | Platform Eng | Infra/Platform | Landing zones, policy, capacity, failover | | Software Eng | Software | Resilience patterns, degradation, telemetry | | SRE | Operations | SLIs/SLOs, error budget, failure drills | | Security/Compliance | Governance | Guardrails, compliance, risk alignment | | Data Eng / DBA | Arch & Infra | Replication, consistency, restore drills | > Clear ownership → fewer gaps, faster decisions, measurable reliability.
